ODM/OEM Fressscale Cortex-A9 i.MX6 Dual Core SBC Support Linux/Andriod

FOB Reference Price:Get Latest Price
$1.00 - $185.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
QY-IMX6S-V(2)
Type:
Freescale
Brand Name:
QY
Place of Origin:
Zhejiang, China (Mainland)
Ethernet:
2*10/100/1000
Memory:
1G DDR3 SDRAM
SCI:
CANx2;UARTx 5;SPI x 3;I2C x 3;LVDS x2
Application Area:
Suitable for Commerical/Industrial/Automotive
Operating Temperature:
-20C°-70C°
Supply Voltage:
Single 12V DC
Application:
Medical Equipment
OS:
Linux 3.0 or Android 4.4
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box/Carton
Port
Shanghai/Ningbo
Lead Time :
Within 5-7 Days after received the payment

                                                    This series is dual core of the i.mx 6

  Fressscale Cortex-A9 i.MX6 Dual Core SBC Datasheet

QY-IMX6S-V2(2) embedded mainboard, adopts Freescale i.MX6 processor, Cortex-A9 core with 1G Hz and can be compatible with solo/dual /quad micro processor for upgrade. This mainboard is with standard i.MX6 Dual series:

The i.MX 6Dual family provides dual cores running up to 1.2 GHz with 1 MB of L2 cache and 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB bus, HD grade NEON SIMD Media Accelerator, Triple Play 3D/2D/VG

Accelerator, 1080P video codec,PCI Express and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and 1080P Interface v1.4, the i.MX 6Dual provides a scalable solution for consumer, automotive and industrial applications.

ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;

  • 1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;
  • 2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;
  • 1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;
  • 2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;
  • 1 industrial gigabit Ethernet MAC(10/100/1000MHZ);
  • 2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;
  • 3 SD/MMC 4.4 and 1 SDXC;
  • 5 SPI, 5 UART, 3 I2C, 4 PWM;
  • Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;
  • Dual LVDS interface, support resolution up to 2048*1536;
  • Freescale PF100 PMU;
  • High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.
  •



2.  Fressscale Cortex-A9 i.MX6 Dual Core SBC Produce Picture





2.2  Fressscale Cortex-A9 i.MX6 Dual Core SBC Mainboard Resource



Hardware Resources

CPU

Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz

RAM

DDR3 SDRAM,4*256MB, total 1GB

Flash

4GB EMMC

Network

AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M

Communication

5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485

1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE   Interface

2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN   output

1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK   indicator

Display

18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up   to 1920 * 1200

VGA, can be connected with universal display

2-ch LCDS Interface, each channel can support resolution   up to 1920*1200

1080P Interface Interface, support 1080P Interface 1.4

MIPI/DSI interface, dual channels communication speed up   to 1 Gbps

Audio

McASP audio interface; binaural output; MIC audio input

Input Interface

4-wire resistive touch panel

Standard I2C   Capacitive panel

CAMERA Interface, standard interface support OV5642   camera module

Expansion Interface

MINI_PCIE 2.0

SIM Card

Memory Interface

1-ch SD Card interface

1-ch SATA Hard disk interface, SATAII standard, speed up   to 3.0Gbps

Other

Reset circuit, Watch dog, RTC, Buzzer, JTAG interface

Power Input

+12V power supply, can support +4.75V~+18V wide range voltage   supply

Resource

Development Tools

Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1

Application layer development debug tool

Cross-compiler

Common terminal development debugging tool

Image File

OS image file, support multiple resolution display

Test Program

Interface using   demo test program and test program source code

Source Code

Bootloader, kernel, system source code

Manual

Mainboard User manual,Device Manual

Schematic

Mainboard structure size chart

Electrical Specification

Size

160mm*105mm

PCB

8-layer high precision immersion gold process

Power

Consumption

3W

Operation Temperature

-20°C ~ +70°C

Operation Humidity

5% ~ 95%, Non-Condensing



Our Advantages?

1.Technical Support for lifetime.

2.Open Source.

3.Customisation Service.

4.Supply stably and chronically.

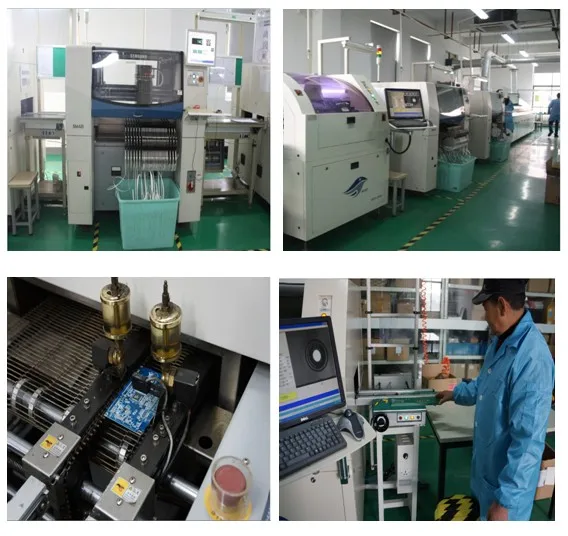

Patch Factory








Accessory Warehouse

R&D Department



[Notes]



Have an intention & interest in them. Join us.



  • pay pal acceptable





Need Hardware Manual &More Information& Consultant ,please add my skype:sally_ma.198907 (24 hours online) E-mail:trade#qiyangtech.com



Whatapp:0086 13616520351  Line:hey_sally
