Quality Free scale ARM cortex A9 powerful custom board IMX6 embedded single board computer/SBC support Android 6.0&Linux 4.15

FOB Reference Price:Get Latest Price
$100.00 - $289.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
D/C:
QY-IMX6S
Package:
BGA
Model Number:
QY-IMX6S
Type:
Freescale
Brand Name:
QY
Place of Origin:
Zhejiang, China (Mainland)
Item Name:
Freescale ARM cortex A9 embedded single board computer Android Linux
CPU:
Freescale i.MX6D processor,ARM Cortex-A9 core,1.2GHz
RAM:
DDR3 SDRAM,4*256MB, total 1GB
Flash:
4GB EMMC
Size:
160mm*105mm
Operating system:
Linux 4.15 or Android 6.0
Working temperature:
-20℃-+70℃
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month I.MX6 SBC
Packaging & Delivery
Packaging Details
PP foam and carton box. 1 pc in a carton
Port
Shanghai/Ningbo

Freescale ARM cortex A9 powerful custom board imx6 embedded single board computer/SBC support

Android 6.0&Linux 4.15







Freescale i.MX6 mainboad: Designed by 8-layer PCB; extend TFT-LCD, LVD, VGA, network,

HDMI, CAN, matrix keypad, SATA, high speed USB Host Device, SD card,RS2325 serial port, audio, etc





i.mx6 SBC Brief Introduction:



ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;



1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;



2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;



1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;



2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;



1 industrial gigabit Ethernet MAC(10/100/1000MHZ);



2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;



3 SD/MMC 4.4 and 1 SDXC;



5 SPI, 5 UART, 3 I2C, 4 PWM;



Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;



Dual LVDS interface, support resolution up to 2048*1536;



Freescale PF100 PMU;



High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.











Freescale ARM cortex A9 powerful custom board imx6 embedded single board computer/SBC support

Android 6.0&Linux 4.15



Product Picture:




i.mx6 SBC Details



CPU Processor

• Freescale i.MX6 processor, ARM Cortex A9 core, 1.0 GHz, compatible with solo/dual/quad core
• 1MBL2 cache,32KB instructions and data cache, NEON SIMD media accelerator

SDRAM Memory

• DDR3 SDRAM,4*256MB,1GB

FLASH Storage

• 4GB EMMC



Network

• AR8035 net chip adopts RGMII mode, support 10M/100M/1000M adaptative network port

Communication Interfaces

• 5-ch RS232 serial pots(Include:1-ch debug port,2-ch RS232 multiplex with RS485)
• 1-ch USB high speed OTG,4-ch USB HOST(Include:1-ch MIN_PCIE interface)
• 2-ch CAN interfaces, support CAN2.0 protocol(Include:1-ch TTL output,1-ch CAN driver output)
• 1-ch 10/100/1000Mbps industrial ethernet, ACT/LINK indicator.

Display Interfaces

• 18bit TFT-LCD(compatible with 16bit/24bit )support 1920x1200 resolution.
• VGA interface, connect to common monitor
• 2-ch LVDS interface, each support 1920x1200 resolution
• HDMI interface, support HDMI 1.4 interface specification

Audio Interfaces

• McASP audio interface, binaural audio output, MIC audio input

Input Interfaces

• 4-wire resistive touch screen interface
• Standard I2C capacitive touchscreen interface
• CAMERA interface, standard interface support OV5642 camera module

Extended Interfaces

• MINI_PCIE 2.0 interface
• SIM card interface

Storage Interfaces

• 1-ch SD card interface
• 1-ch SATA HD interface, SATAII standard,3.0Gbps

Power input

• +12V power supply, support +4.75V~+18V wide range voltage input

PCB Specification & Size

• Using 8-layer of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 160mm x 105mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch order could be customized to -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

• 12V Dc power supply, low power consumption, <3W

Support OS

• Linux 3.0/4.1.15+QT4.8
• Android 4.4/6.0






i.mx6 SBC wirings and CD data

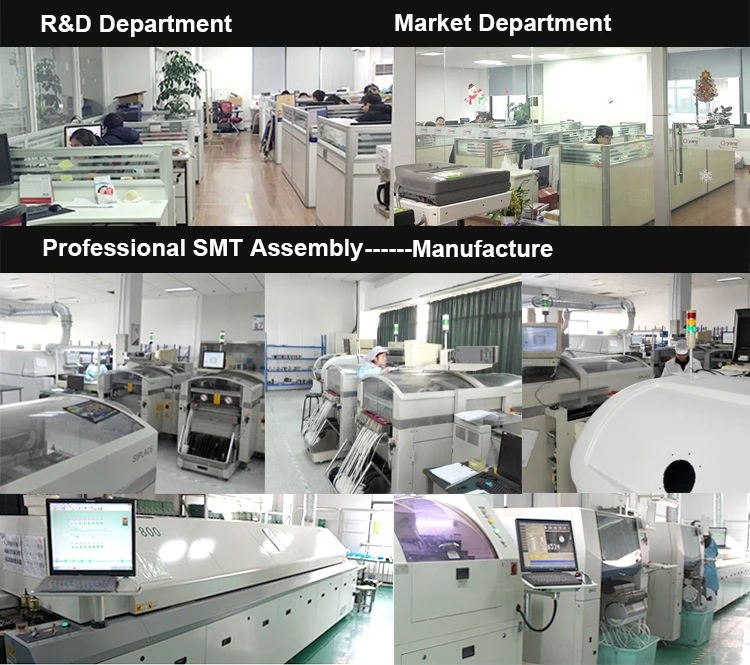

Company Information



    Located in HANGZHOU city, where G20 meeting was exhibited, our company Qiyang attracted a number of people with ability.
    Our company goal: Improve, mutual benifit, development, creat greater value and our company is dedicated to become a leading embedded hardware and software supplier.



Qiyang Quotes





About Technical support

As for the market of ARM mainboards, you could see cheap boards walks crosswise like Samsung development board, which makes us disregard something related to efforts in technical support. The cost of an engineer is not low! Meanwhile, for some who haven't had access to ARM and OS, the most important part is technical support. Maybe one would say, there are reference material in internet, right, while, it costs a plenty of time and efforts to verify the truth of those information, which becomes a part of cost.



About Quality
1. One year quality warranty
2. Life-time technical support



About Price
Qiyang is entity LTD, not agency or dealer of ARM board, we sale our i.mx6 ARM board in Alibaba in order to broaden the promotion channels. We could give you price included TAX.



TFT-LCD
In industrial application, LCD varies much from size, brightness,operation temperature, backlight ways, power comsumption, etc. For ommon sizes like 4.3'', 5.6'', 6.4'', 7'', 8'', 10.4'' and monochrome screen some customer requires, we could provide a range of LCD modules, that is, LCD backboard integrated by data cables of touch screen, backlight and so on. Therefore, it provides convenience to you to consider construction design and installment.



Emulator
It is no need to integrate emulator in our ARM board, the reason is that mainboards above ARM9 run OS, the function of emulator is downloading boot code when burning system. For our ARM board, downloading boot code could be finished by network, USB, serial port and so forth. So why use the emulator to just incur a waste of time and money?





Wanna get free hardware manual of our i.mx6 SBC?

Wanna know accurate price and delivery time of our i.mx6 SBC?

Wanna consult information about R&D service?



Contact us NOW!



Janet Xie

Tel: 008615990195791 Fax: +86-571-87858811

Mobile/WhatsApp/Wechat/Line: 008615990195791

SKYPE: xiejy_3            QQ: 770552687

E-mail: xiejy <at> qiyangtech.com
