Embedded industrial grade Core board with I.MX6 ARM A9 MCU support Android and Linux

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)

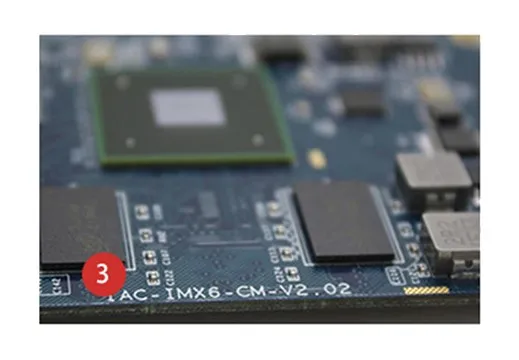

Model Number:
IAC-IMX6-CM
Customization:
Customized logo (Min. Order: 100 Pieces)
customized connectors (Min. Order: 100 Pieces)

More

customized size (Min. Order: 100 Pieces)
customized functions (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
Qiyang
Place of Origin:
Zhejiang, China (Mainland)
CPU:
Freescale I.MX6 A9 1.0GHz
RAM:
1GB or 2GB DDR3
Flash:
4GB, 8GB, 16GB or 32GB EMMC
Ethernet:
10/100/1000Mbps
Communication connector:
RS232, USB, CAN, SDIO
Display connector:
2-ch LVDS, VGA, H.264 1080@60 Video Decoder
storage connector:
1-ch SD card slot; 1-ch SATA
Others:
EIM; I2C; Audio; RTC; Watch Dog; Buzzer
OS:
Android 4.4/4.2; Linux 3.0.101
Size:
86*60mm
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Box
Port
Shanghai/Hangzhou
Product Description
Resources
Description
Resources
Description

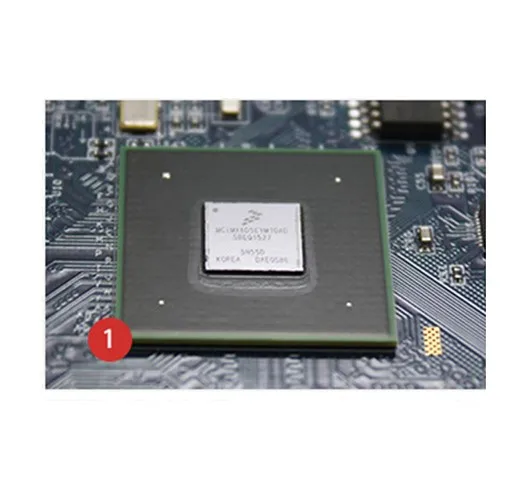

CPU processor
Freescale i.MX6 processo; Max 1.0GHz; support Solo&Dual&Quad
Layer
8-layer high precision immersion gold process
RAM
DDR3 SDRAM, 4*256MB, 1GB

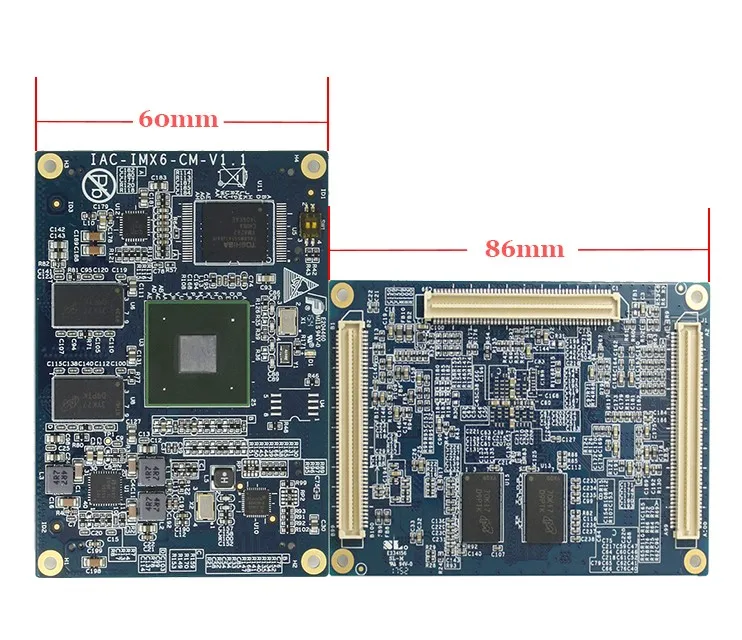

Size
86mm*60mm

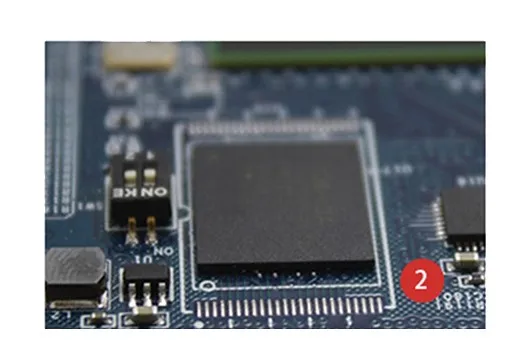

ROM
4GB EMMC
Power Consumption
≤3W
Network
AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M
Operation Temperature
-20℃ ~ +70℃ (Could be upgraded to industrial level temperature)

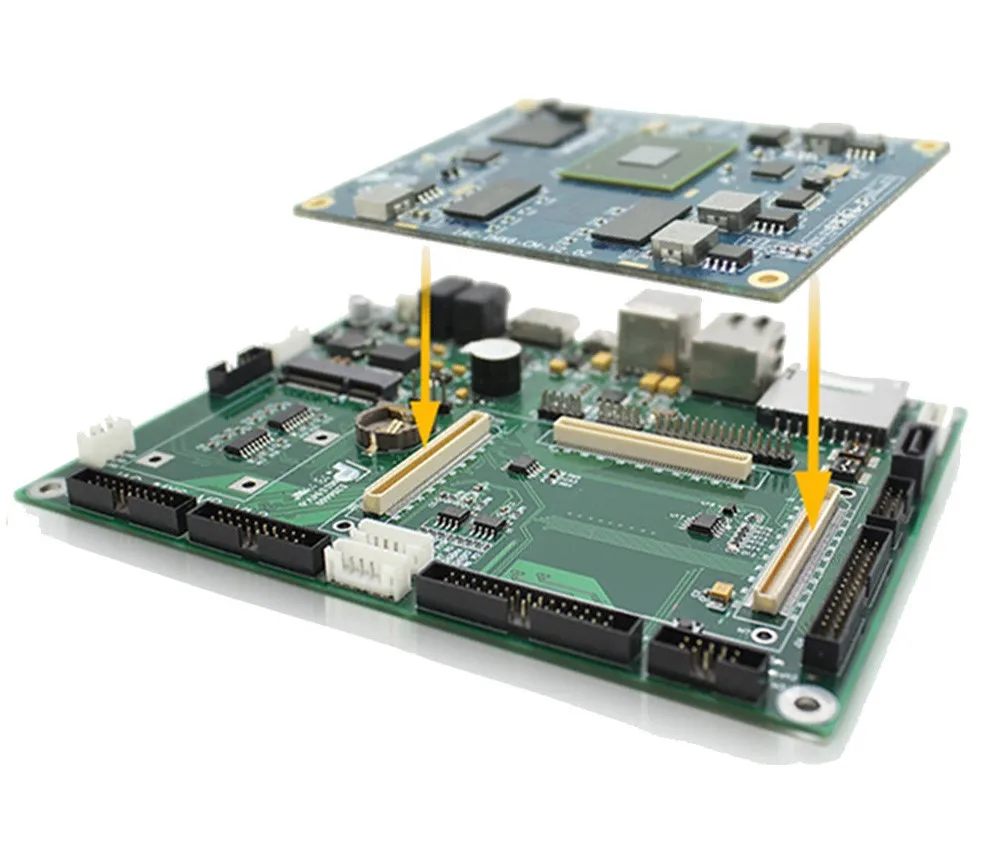

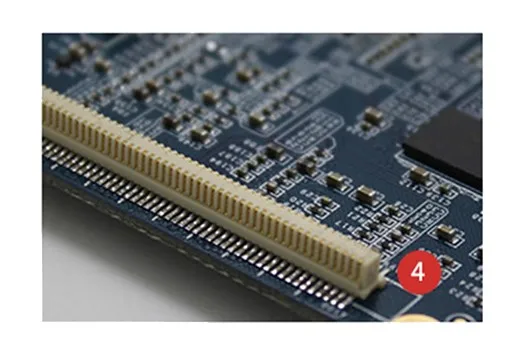

B to B connector
FCI customized B to B connector
Operation Humidity
5% ~ 95%, Non-Condensing

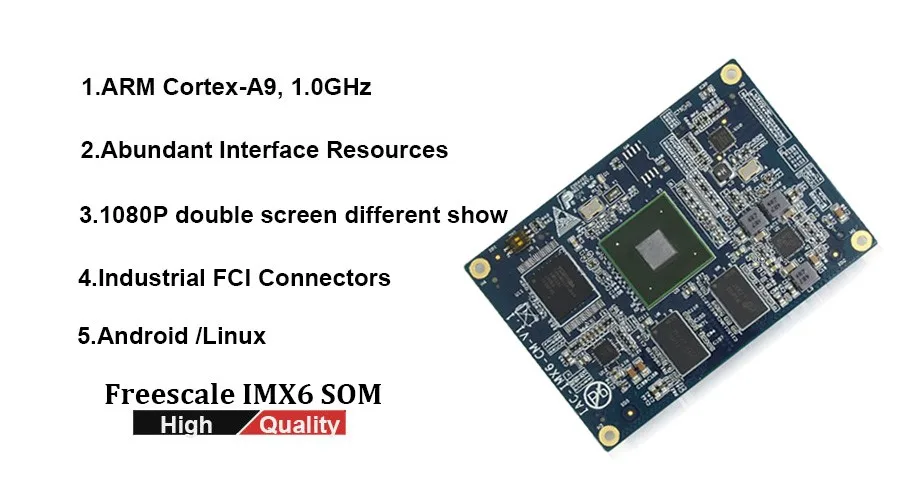

Freescale I.MX6 CPU Resources:

ARM® CortexA9, maximum is up to 1.2GHz, compatible with solo/dual/quad core;

◆1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;

◆2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;

◆1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;

◆2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;

◆1 industrial gigabit Ethernet MAC(10/100/1000MHZ);

◆2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;

◆3 SD/MMC 4.4 and 1 SDXC;

◆5 SPI, 5 UART, 3 I2C, 4 PWM;

◆Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;

◆Dual LVDS interface, support resolution up to 2048*1536;

◆Freescale PF100 PMU;

◆High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection

Detailed Images
Related Products
Our Company

We are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer, new brand bulk buy motherboard  with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over ten years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.

Packing & Delivery

International Express Delivery, Quick and convenient

Standard Package, Safe and Complete

Our Service

1. Sample order

2. Customization service

Provide device selection, design suggestions, plate type design;
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service.

FAQ

Q1. What is your terms of delivery?
A: FOB

Q2. How about your delivery time?
A: Generally, it will take 5 to 7 working days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We provide the unlimited technical support to help our clients testing and developing their project more efficiently.
